Cluster Computing

Once upon a time, I developed the StarT-X and StarT-Jr parallel systems. In 1998, a Hyades StarT-X Cluster with 32 400MHz Pentium-II Xeon processors was delivered to MIT's Earth Atmosphere and Planetary Science Department. For several years, the cluster was their primary facility for running MITgcmUV (a general circulation model for climate simulation) in research and courses.

Images

A StarT-X PCI NIU Card


MIT EAPS Hyades Cluster of 16 2-way x86 nodes

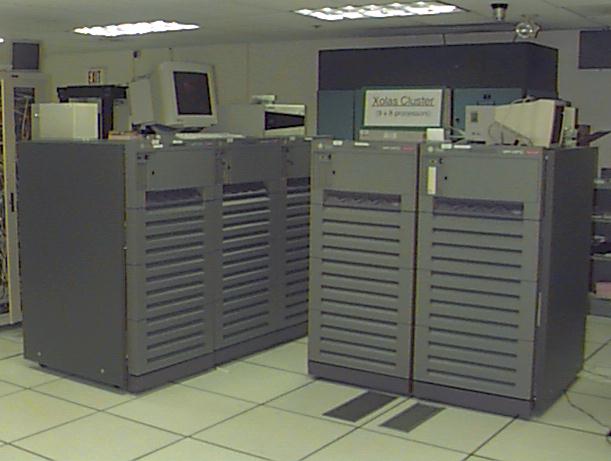

MIT LCS Xolas Cluster of 9 SUN E5000 SMP's with 8 processors each


Two StarT-X Cards in a SUN Enterprise PCI I/O Board

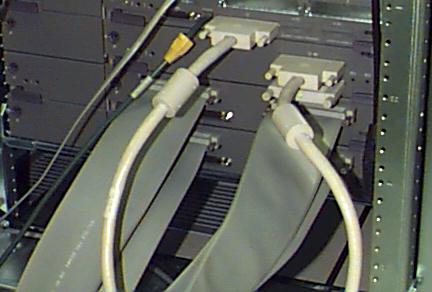

Arctic cables (gray ribbons about $100 each) exiting the back panel of a SUN E5000 with 4 StarT-X cards


Four Arctic Test Boards (a 4-way switch)


Production Arctic Switch (populated for 32 endpoints)
